GetTextLocation / GetVisibleText

GetTextLocation / GetVisibleText

If for some reason QTP/UFT is unable to recognize an object in an application then you may use GetTextLocation / GetVisibleText.

GetTextLocation

GetTextLocation verifies whether the stated text string is contained in the specified window area and returns true or false accordingly.

Syntax of GetTextLocation

object.GetTextLocation (TextToFind, Left, Top, Right, Bottom, [MatchWholeWordOnly])

-MatchWholeWordOnly is optional, rest all are required. A boolean True or False value is returned.

-You can set the Left, Top, Right, and Bottom coordinates to -1 to search for the text string within the object's entire window.

Example of GetTextLocation:

Open the login dialog as shown and run the code written in Descriptive Programming below:



l = -1
t = -1
r = -1
b = -1

y= Dialog("text:=Login").GetTextLocation ("OK", 0 ,l,t,r,b)

msgbox y
If y = "True" Then

Dialog("text:=Login").Activate
Dialog("text:=Login").WinEdit("attached text:=Agent Name:").Set "sachin"
Dialog("text:=Login").WinEdit("attached text:=Agent Name:").Type  micTab
Dialog("text:=Login").WinEdit("attached text:=Password:")._
SetSecure "51e02a499eb8ef07baf933c069405c7f8b5ca87d"
Dialog("text:=Login").WinButton("text:=OK").Click
Else
msgbox ("Dummy")
End If

Output:
In the above code y will contain True and user will be able to login into the application.

GetVisibleText

GetVisibleText returns the text from the stated area.

Syntax of GetVisibleText

object.GetVisibleText ([Left], [Top], [Right], [Bottom])

-The Left, Top, Right and Bottom coordinates are optional. An object is of type WinButton. A string value is returned.

Example of GetVisibleText:

Open the login dialog as shown and run the code written in Descriptive Programming below:



Dialog("text:=Login").Activate
var=Dialog("text:=Login").WinButton("text:=Cancel").GetVisibleText
msgbox (var)

Output:
In the above code the message box will show text "Cancel".

GetVisibleText

HP itself recommends using GetROProperty method to retrieve the value of the text (or equivalent) property from an object in your application instead of using the GetVisibleText method as the results of GetVisibleText may be different in different run sessions depending on the operating system version you are using, service packs you have installed etc.

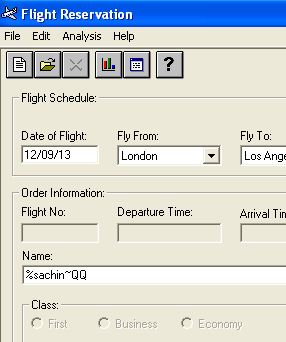

Below is another example where GetTextLocation is able to recognize even special characters:





l = -1
t = -1
r = -1
b = -1

Window("Flight Reservation").Activate
y=Window("Flight Reservation").WinEdit("Name:").GetTextLocation ("~", 0 ,l,t,r,b)

msgbox y
